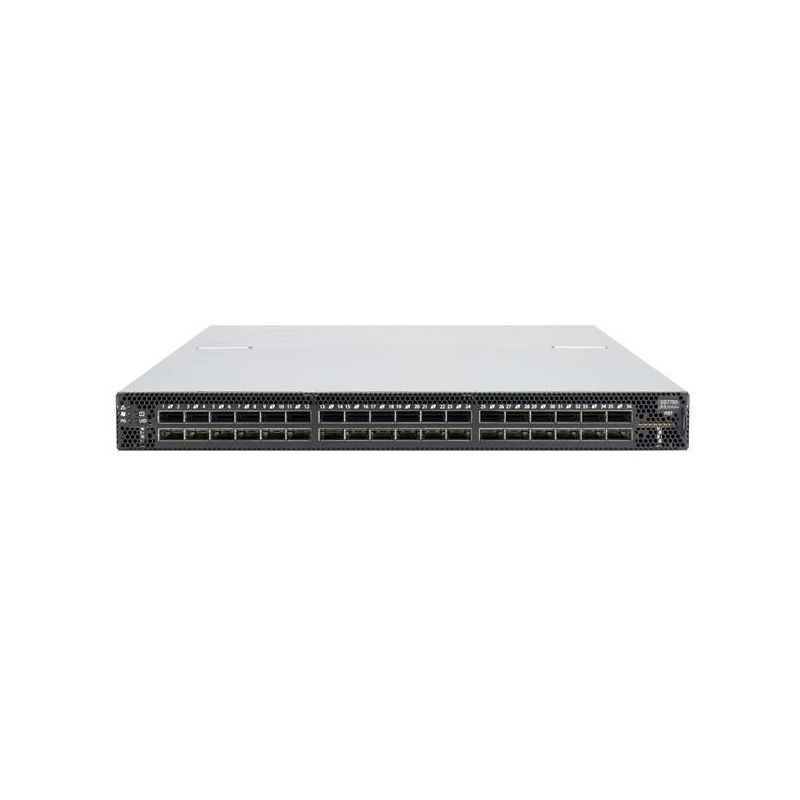

Mellanox IB EDR v2 36p RAF Управляемый коммутатор
Dimensions & Weight
- Depth
- 27 in
- Height
- 1.7 in
- Weight
- 24.25 lbs
- Width
- 16.8 in
Environmental Parameters
- Humidity Range Operating
- 5 - 95%
- Max Operating Temperature
- 113 °F
- Max Storage Temperature
- 158 °F
- Min Operating Temperature
- 32 °F
- Min Storage Temperature
- -40 °F
Expansion / Connectivity
- Interfaces
- 36 x EDR InfiniBand QSFP28 ¦ 1 x management ¦ 1 x USB ¦ 1 x serial (RS-232) DB-9 ¦ 2 x Gigabit LAN
General
- Capacity
- Forwarding table entries (Multicast): 16384
- Compliant Standards
- IBTA 1.21, IBTA 1.3
- Device Type
- Switch - 36 ports - managed
- Enclosure Type
- Rack-mountable 1U
- Features
- Port mirroring, back to front airflow, InfiniBand FDR Link support, adaptive routing, non blocking ports, hot swappable fan, InfiniBand EDR Link support, Co-Design Scalable Hierarchical Aggregation Protocol (SHArP) technology
- Performance
- Port-to-port latency: 90 ns ¦ Aggregate bandwidth: 7 Tbps
- Ports
- 36 x EDR InfiniBand 100 Gigabit QSFP28
- Subtype
- InfiniBand
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labor - 3 years - response time: next business day
Miscellaneous
- Compliant Standards
- FCC Class A certified, VCCI, CISPR 22 Class A, BSMI CNS 13438 Class A, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC, RoHS, ICES, EN55024 Class A, ICES Class A, ISO 7779, ETS 300 753, VCCI Class A, AS/NZS CISPR 22, EN 61000-3-2 Class A, EN 61000-3-3 Class A, EN 55022 Class A, KN35, KCC KN32 Class A
- Included Accessories
- Rack mount kit
Power
- Installed Qty
- 2 (installed) / 2 (max)
- Power Device
- Internal power supply - hot-plug
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
